How to set the scale the same when comparing two different studies in Moldflow Insight?

How to set the scale the same when comparing two different studies in Moldflow Insight?

Reviewing results within Moldflow is one of the most critical tasks for an analyst.

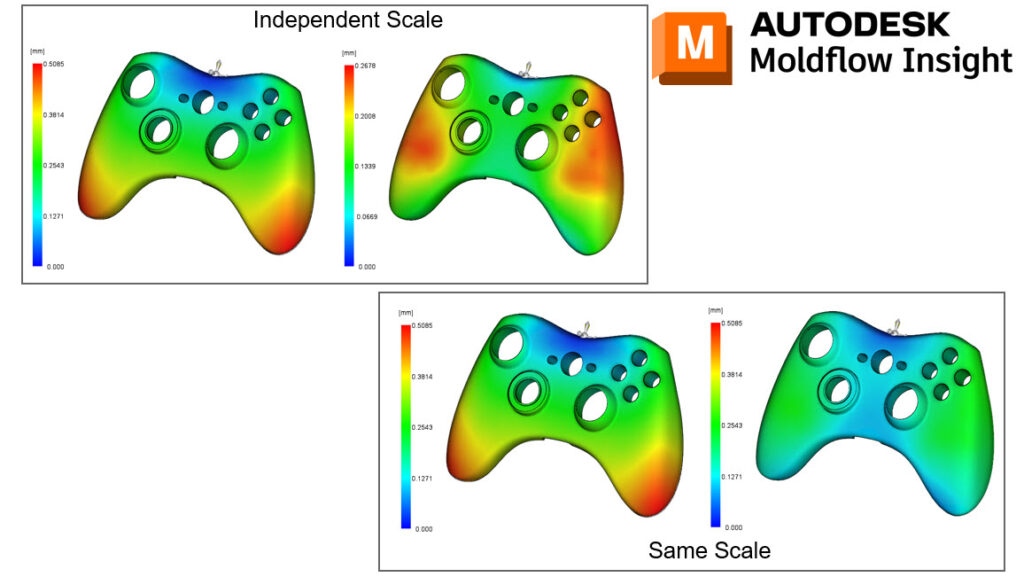

When comparing two different studies, you can easily use the Tile command along with locking all views. Ideally, you should also set the scales to be the same. This allows the color scheme to match each study and can help simplify our results review process.

Do you set the scale the same when comparing two different studies in Moldflow Insight?
